Name：JZ-F-AD
Describe：Use JZ-F-AD type three-phase permanent magnetic AC generator is mainly used for radio, flashlight battery, mobile power charging power supply, AC voltage, the output of the generator with rectifier and filter, can be used as a DC power supply. The main technical indicators 1 output voltage: three-phase output line voltage and rotor speed is proportional to, when the motor speed is 3000/min, the output voltage is 5V. 2 output current: the maximum output current is greater than or equal to 400 mA The 3 phase: phase winding for human hair, phase resistor of 9.5 +％10 Installation and use (1) motor appearance and installation dimensions as shown above. (2) shaft gear materials: Z=10, m=0.6, a=20 degree pressure angle modulus. (3) when the noise of the motor increases, the gear oil drops into the clock.
Use
JZ-F-AD type three-phase permanent magnetic AC generator is mainly used for radio, flashlight battery, mobile power charging power supply, AC voltage, the output of the generator with rectifier and filter, can be used as a DC power supply.
The main technical indicators
1 output voltage: three-phase output line voltage and rotor speed is proportional to, when the motor speed is 3000/min, the output voltage is 5V.
2 output current: the maximum output current is greater than or equal to 400 mA
The 3 phase: phase winding for human hair, phase resistor of 9.5 +%10
Installation and use

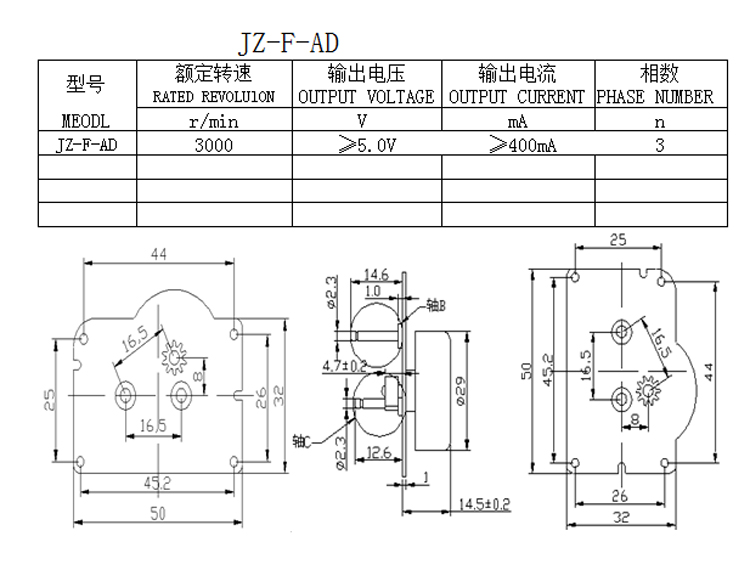

(1) motor appearance and installation dimensions as shown above.
(2) shaft gear materials: Z=10, m=0.6, a=20 degree pressure angle modulus.
(3) when the noise of the motor increases, the gear oil drops into the clock.
