Use
JZ-DF-110 type three-phase permanent magnetic AC generator is mainly used for the storage battery with radio, camping lights for charging power supply, AC voltage, the output of the generator with rectifier and filter, can be used as a DC power supply.


The main technical indicators
1．Output voltage: three-phase output line voltage and rotor speed is proportional to, when the motor speed is 3000/min, the output voltage is 7V.

2．The output current, the maximum output current is greater than or equal to 1200 mA
3．Resistance: three phase winding for human hair, phase resistor of 3.5 + 1.


Installation and use

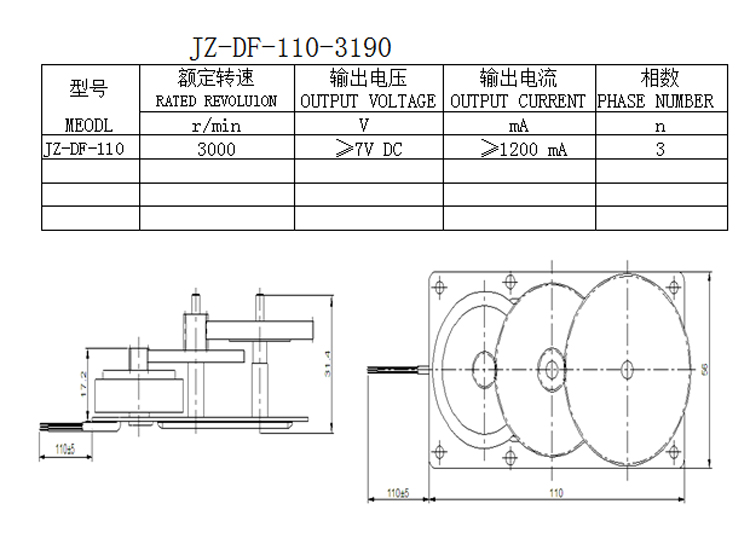

（1) The motor of the appearance and installation dimensions as shown above.
（2）Shaft gear materials: Z=10, m=0.6, a=20 degree pressure angle modulus.
（3）When the noise of the motor increases, the gear oil drops into the clock.
